Type : power transformer
Material : Aluminum, Copper
Frequency : 50Hz, 60Hz, 1KHz -200KHz
Shape : Coil, Rectangle
Toplogy : Boost, Flyback
Winding Material : Copper, Aluminum
Place of Origin : Guangdong, China
Brand Name : Chipsen
Model Number : UR70
application : Power
Phase : Single Phase
Coil Structure : TOROIDAL
Coil Number : AUTOTRANSFORMER
Input Voltage : 12v-240v, 120v 208v 7.2v 240v 48v
Output Voltage : 12v-240v
Product name : Chipsen
Certification : UL/ISO9001/ISO14001/RoHS/Reach
Application : Medical Equipment
Warranty : 5 Years
Core material : Cold Rolled Silicon Steel Sheet
Operating temperature : 40 To+125
Standard : IEC60076
Advantage : High Quanlity
MOQ : 1000 pieces
Price : CN¥96.53/pieces 1000-2999 pieces

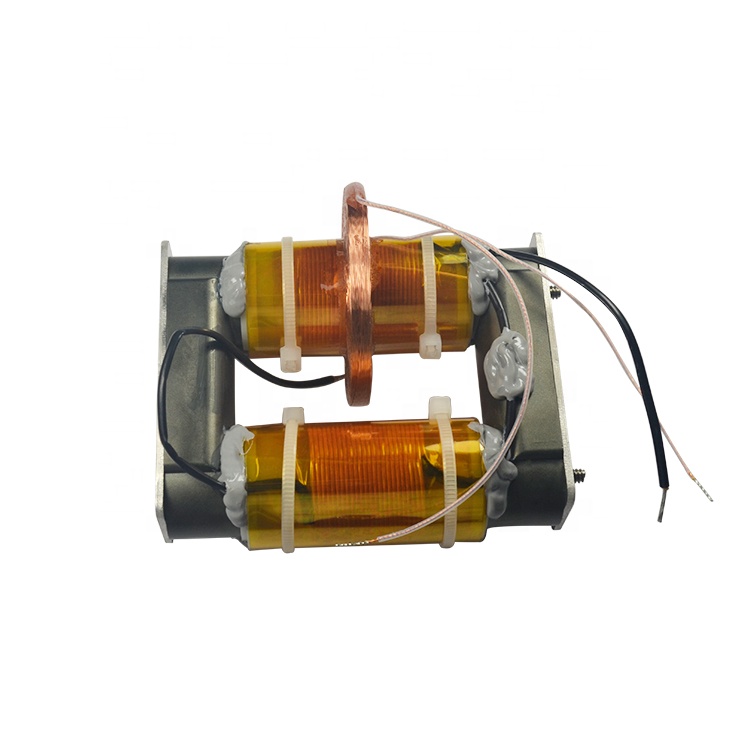

![]() | Model No. | High frequency transformer UR70 |
Working Frequency Range | 1KHz-1MHz | |
Output Power | 1W-3000W | |
Output Voltage | 0.5V-15000V | |
Output Current | 0.01A-100A | |
Storage Temperature | +5℃ to +95℃ | |
Working Temperature | -40℃ to +125℃ | |
Storage Humidity | 30% to 70% | |
Certifications | ISO9001:2015, ISO14001:2015, IATF16949, UL/cUL, ROHS, REACH, CQC | |
Designing Information | operating frequency | |
circuit topology | ||
input voltage range | ||
output power (V/A) | ||
mounting dimensions | ||
safety requirements | ||
product application |
How to get samples?
Chipsen Sample Policy
How long the sample can be ready?
Shipping for samples Customer afford freignt cost, we can help customer to use the cheapest way.
![]() |
Step up 120v 208v 7.2v 240v 48v Ozone Pulse Cold Rolled Silicon Steel Sheet Transformers with 1KHz -200KHz Frequency Images |
